FLEX-RIGID PCBs

FLEX-RIGID PCB TECHNOLOGY

Flex-Rigid printed circuit boards are boards that uses a combination of rigid and flexible boards technologies in your applications. Incorporating our advanced technology and reliability, the PCB Connect Group Flex Rigid capability gives you the security that your product deserves. Using our collaborative design for cost and design for manufacture programs, we can optimize your Flex Rigid design to help achieve your product aims.

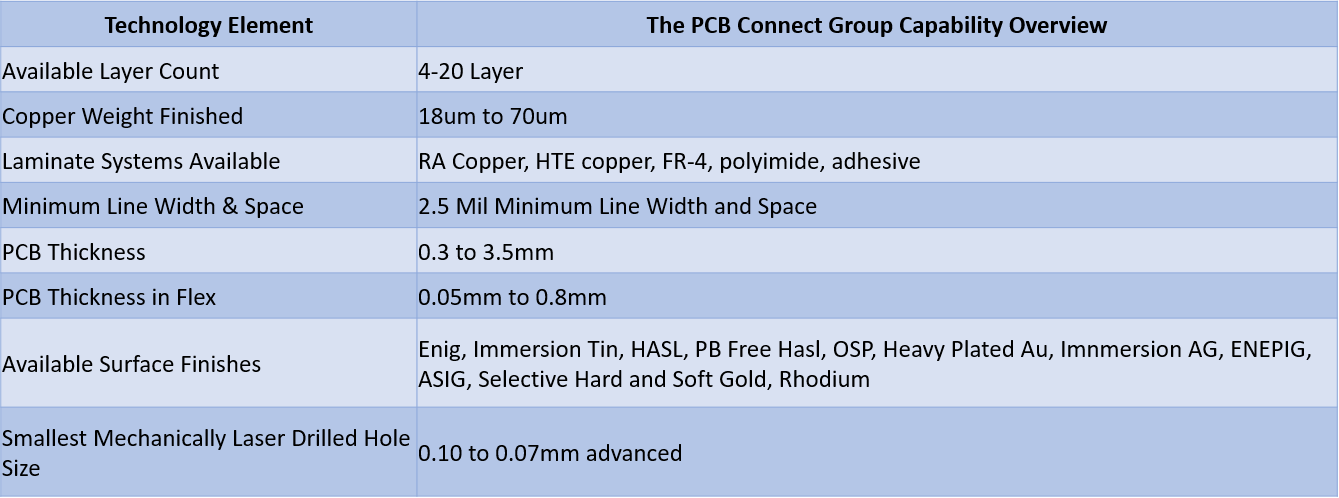

Technology Element The PCB Connect Group Capability Overview
Available Layer Count4-20 Layer
Copper Weight Finished18um to 70um
Laminate Systems AvailableRA Copper, HTE Copper, FR-4, Polyamide, Adhesive
Minimum Line Width & Space2.5 Mil Minimum Line Width and Space
PCB Thickness0.3 to 3.5mm
PCB Thickness in Flex0.05mm to 0.8mm
Available Surface FinishesEnig, Immersion Tin, HASL, PB Free HASL, OSP, Heavy Plated Au, Immersion AG, ENEPIG, ASIG, Selective Hard and Soft Gold, Rhodium
Smallest Mechanically Laser Drilled Hole Size0.10 to 0.07mm Advanced
