Flexible PCB Technology

Flexible printed circuit boards are boards that uses flexible based material in your applications. Providing Flexible PCB Technology to some of the most demanding market segments globally, the need for reliability and maximum process control are key to success. With many years of experience in the supply of Flexible PCB's this product is one close collaboration through all aspects of the design phase truly pays dividends.

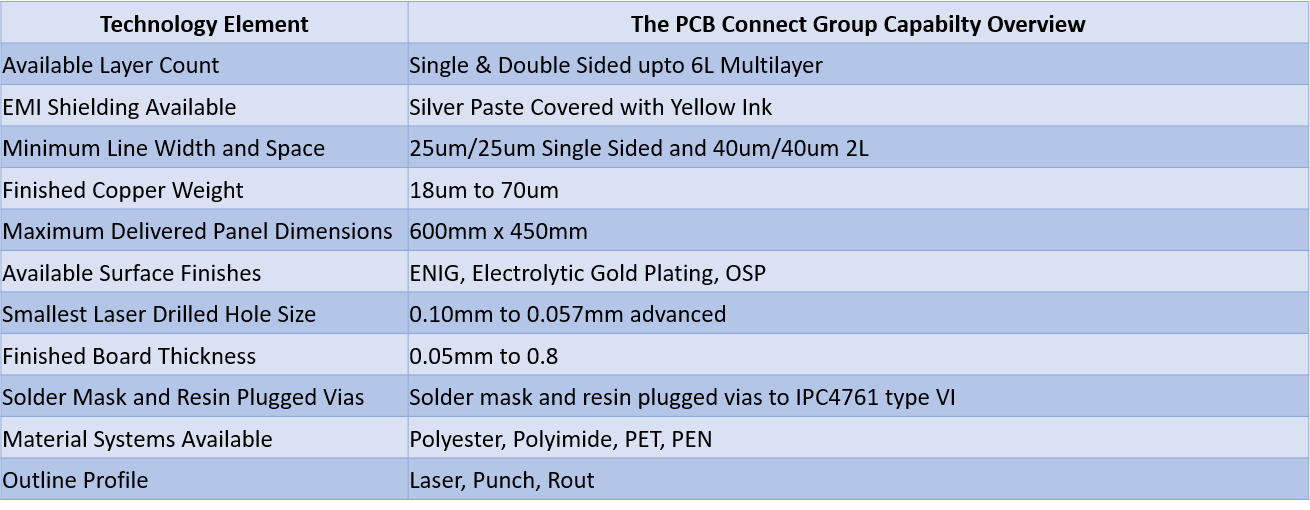

Technology Element The PCB Connect Group Capability Overview
Available Layer Count Single & Double Sided up to 6L Multilayer
EMI Shielding Available Silver Paste Covered with Yellow Ink
Minimum Line Width and Space 25um/25um Single Sided and 40um/40um 2L
Finished Copper Weight 18um to 70um
Maximum Delivered Panel Dimensions 600mm x 450mm
Available Surface Finishes ENIG, Electrolytic Gold Plating, OSP
Smallest Laser Drilled Hole Size 0.10mm to 0.057mm Advanced
Finished Board Thickness 0.05mm to 0.8mm
Solder Mask and Resin Plugged Vias Solder Mask and Resin Plugged Vias to IPC4761 Type VI
Material Systems Available Polyester, Polyamide, PET, PEN
Outline Profile Laser, Punch, Rout
